Product details:

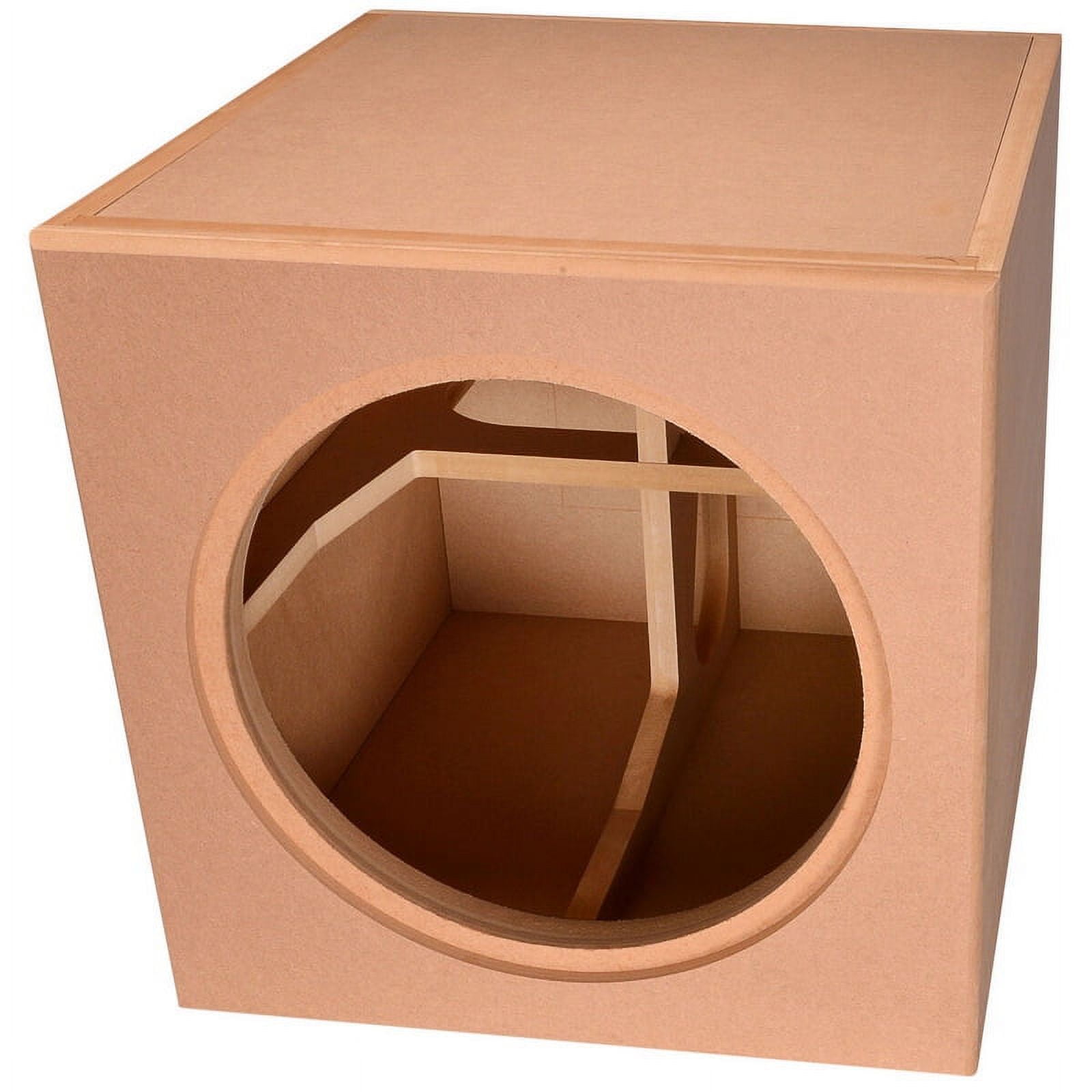

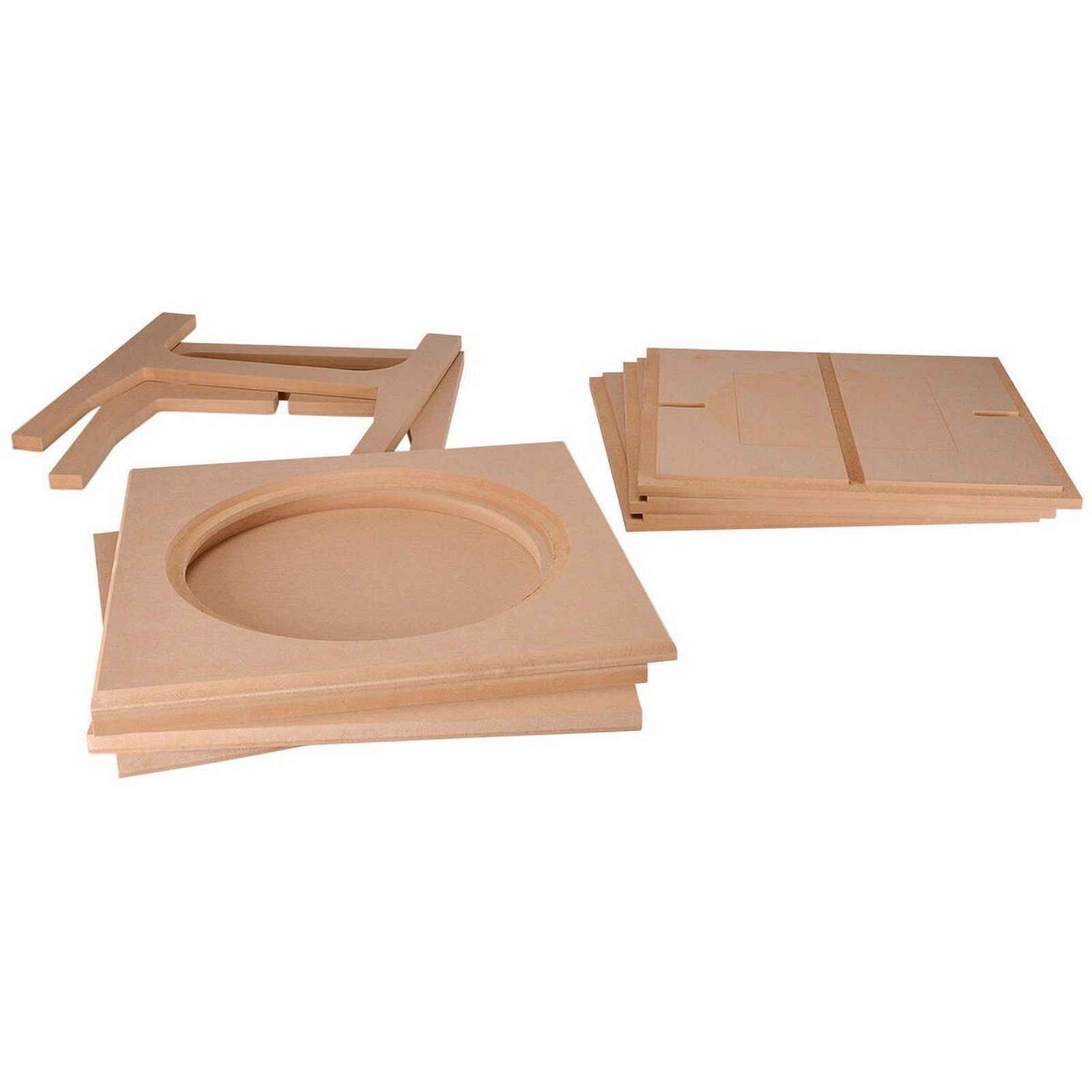

Build the ultimate subwoofer using this extremely rigid, knock-down, three cubic foot subwoofer cabinet. Extremely well thought out, this cabinet includes precision-machined panels that include dadoes, a double-thick front baffle, and a unique two-piece brace system.
Key Features:

• 3 cubic foot cabinet made of 3/4" MDF panels with a 1-1/2" thick front baffle
• CNC-machined dadoes, subwoofer cutout and recess, and a unique bracing system that increases cabinet rigidity
• Designed specifically for the Dayton Audio RSS390-4 Reference Series High Output subwoofer

Denovo Audio Knock-Down MDF 3.0 cu. ft. Subwoofer Cabinet for Dayton Audio 15" Reference Series HO
Even the easiest do-it-yourself subwoofer can turn into an arduous project; from uneven cuts, to measuring mistakes. CNC knock-down cabinets make it easy for the beginner to end up with amazing finished results without all of the time and effort necessary to perfect your woodworking skills. This cabinet is designed for speaker builders and designers who don't have access to expensive tools or a woodshop.
This particular cabinet is designed specifically for the Dayton Audio 15" Reference Series High Output subwoofer, but works for any subwoofer with an overall diameter of 15-3/8" or less, and a cutout requirement of 14-1/16" or less. The sealed enclosure design creates a critically damped subwoofer system when used with the Dayton Audio RSS390HO-4.

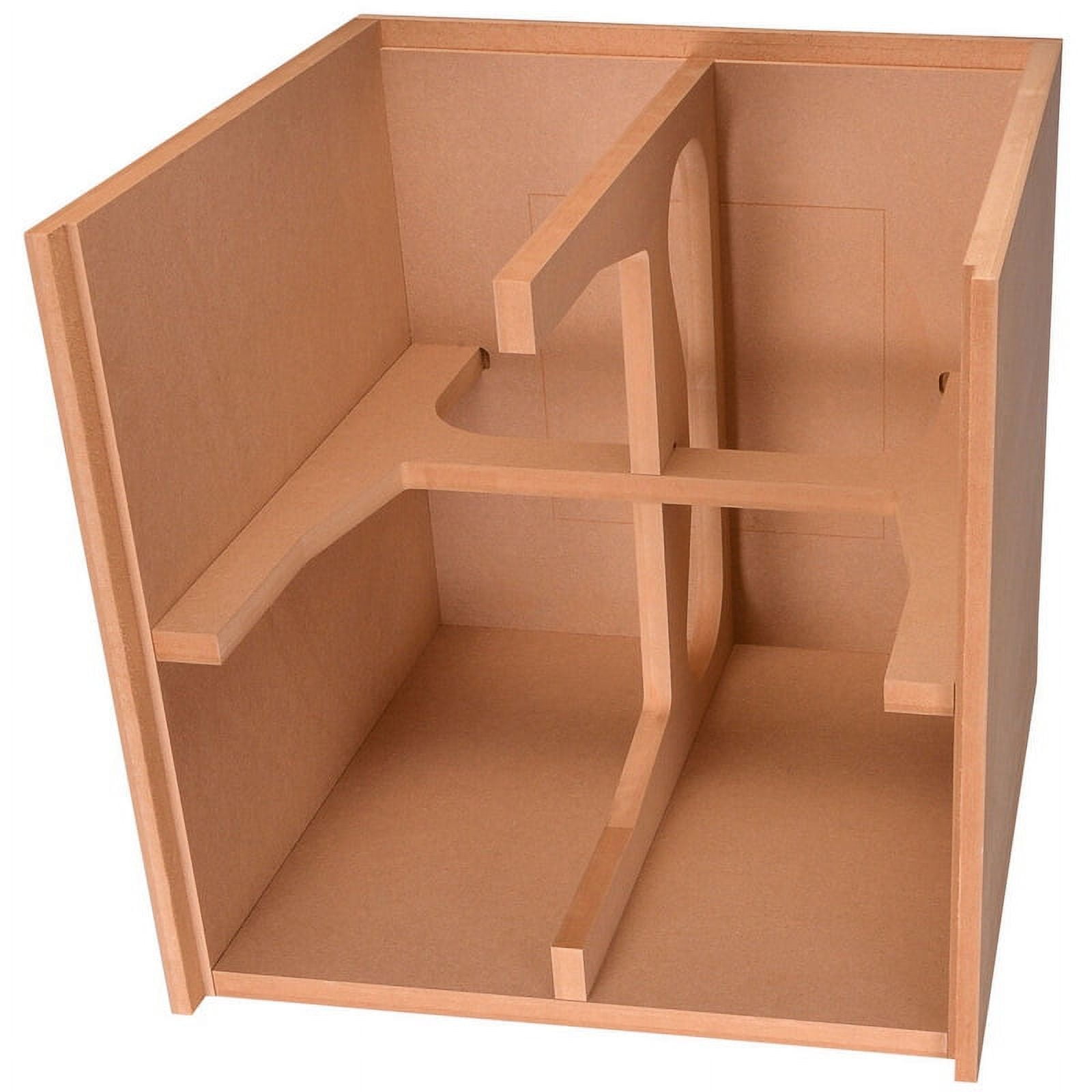

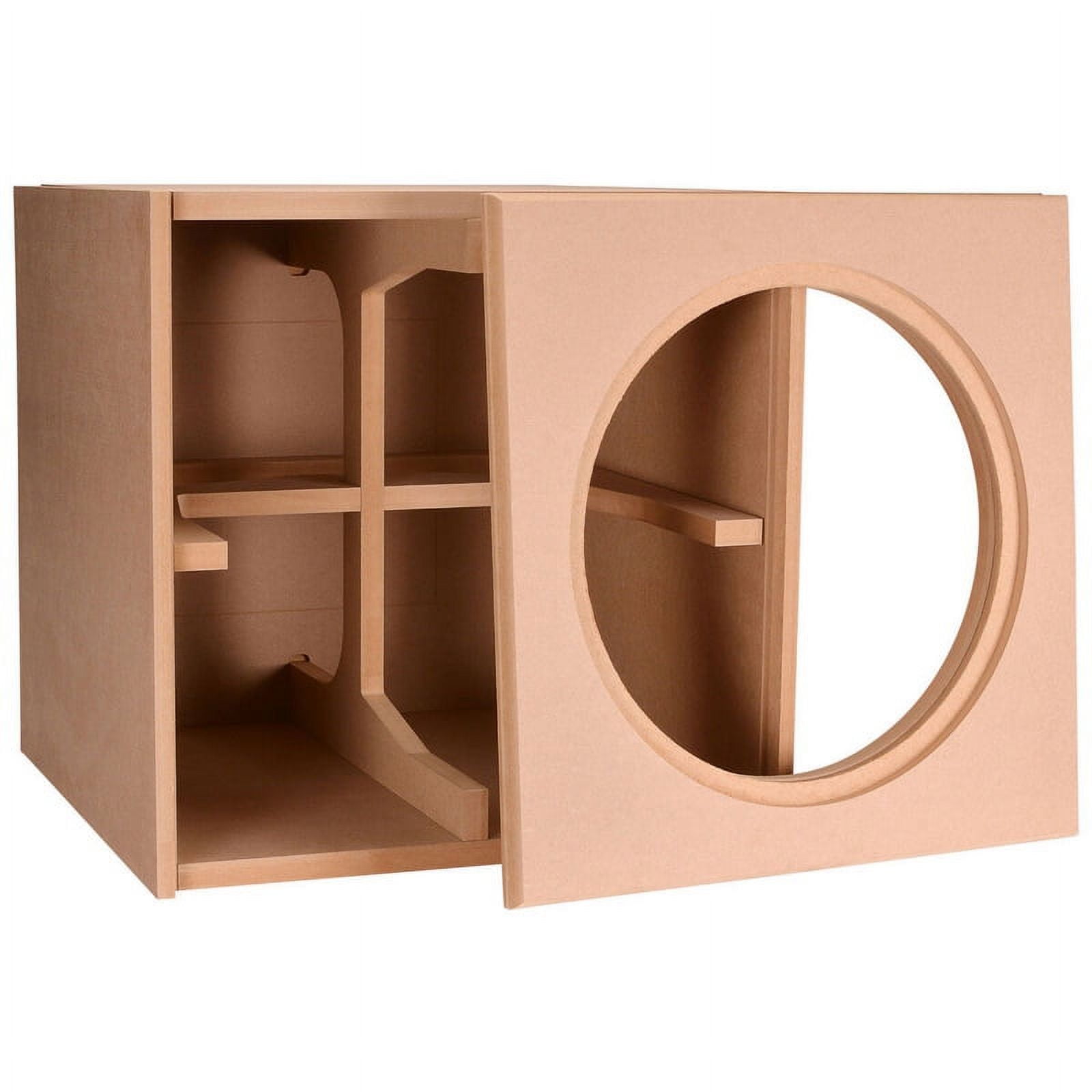

During the CNC manufacturing process, rabbets dadoes are cut into the back panel for precise panel alignment. A unique two-piece brace adds superior rigidity without affecting the subwoofer's performance. Both side panels feature 3/4" rabbeted extensions with recesses to perfectly install the first piece of the two-part, double thick baffle. Plate amplifier installation is made easy by following the scribed interior guide with a jig saw and by modifying one of the braces.
The end result is a resonance-free, sealed subwoofer cabinet that is purpose-built to extract the best performance from Dayton Audio's 15" High Output Reference Series subwoofer. All that's left to do is finish it to match your dcor or paint it to stand out. When your friends ask about it, you get the pleasure of saying, "I built it myself!"
Specifications: Panel thickness: 3/4", front baffle is 1-1/2" Panel material: Medium Density Fiberboard (MDF) Finished net cabinet volume (subtracting the double thick baffle, bracing, andwoofer volume): 3.0 cubic feet External dimensions: 19.25" H x 19.25" W x 20" D Subwoofer recess: 7/16" Weight: 52 lbs. Made in the U.S.A.

Product Details

BrandDenovo Audio IncPart Number300-7078UPC848791000690Unit of MeasureEachWeight52
Brand:Denovo Audio
Manufacturer Part Number:300-7078
Manufacturer:Denovo Audio
